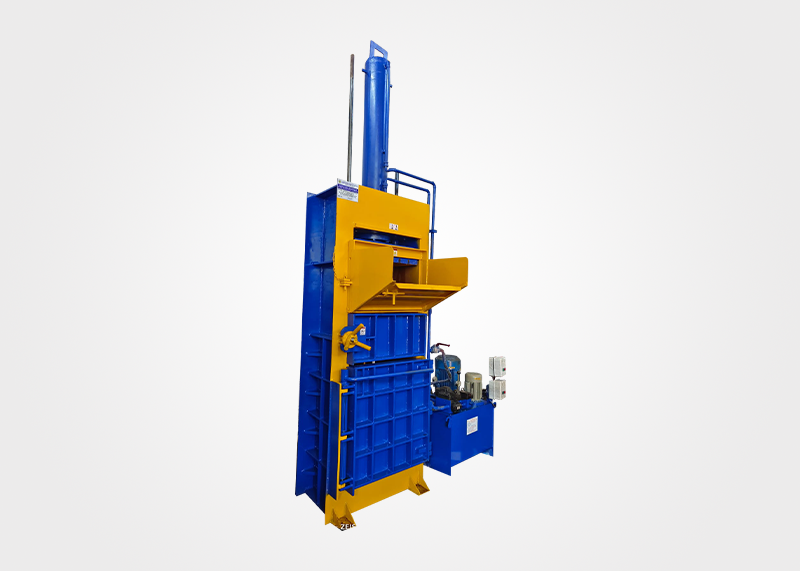

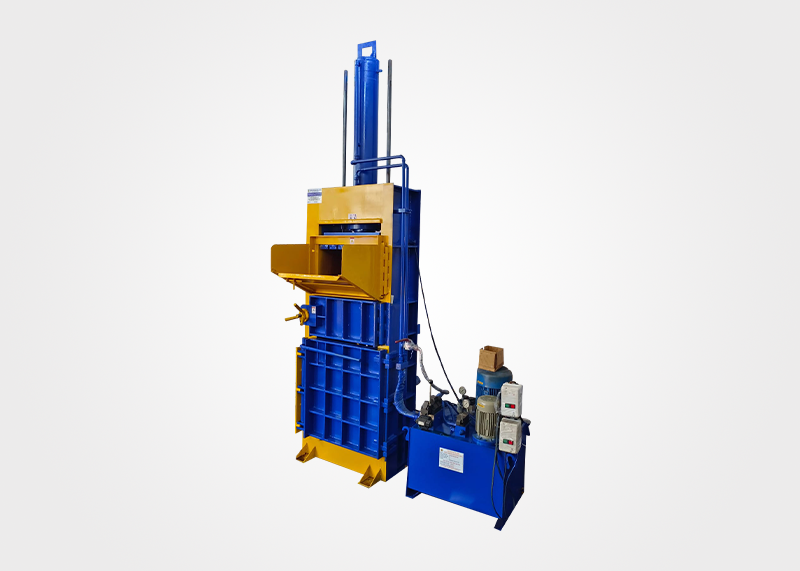

75 Ton Pet Bottle Baling Press

Capacity 75 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine
Bale Size 30(L)x20(W) in Inch
Bale Weight 180 to 200 Kg.
Chamber Size 30(L)x20(W)x72(H) In Inch
No. of Cylinder 1 Main + 1 Pusher (2 Nos.)
No. of Tie 4 Nos.
No. Of Door 2 Nos.
Cylinder Size 200(Bore)*245(Od)*135(Ram)*1400 (Stroke) mm
Bale Eject Cylinder Systems
Oil Tank Capacity 300 Liters.
Production Rates 20 To 25 Minuets
Hydraulic System Double Vane Pump Systems
Day light Gap 72 Inch
Operation Hand levers Operate Systems
Electric Motor 15 + 3 HP Motor 3Phase 1440 RPM 50Hz
Delivery Time 25 Working Days.
Overall Dimension 90 (L) x 70 (W) x 160(H) In Inch
Body Plate 8 mm,12mm,30mm
Usage/Application pet bottle, plastic film, plastic bottle
