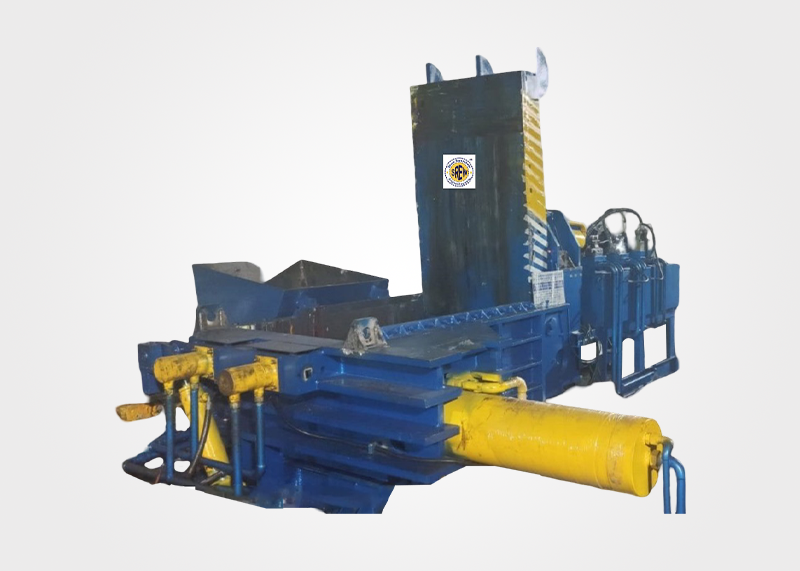

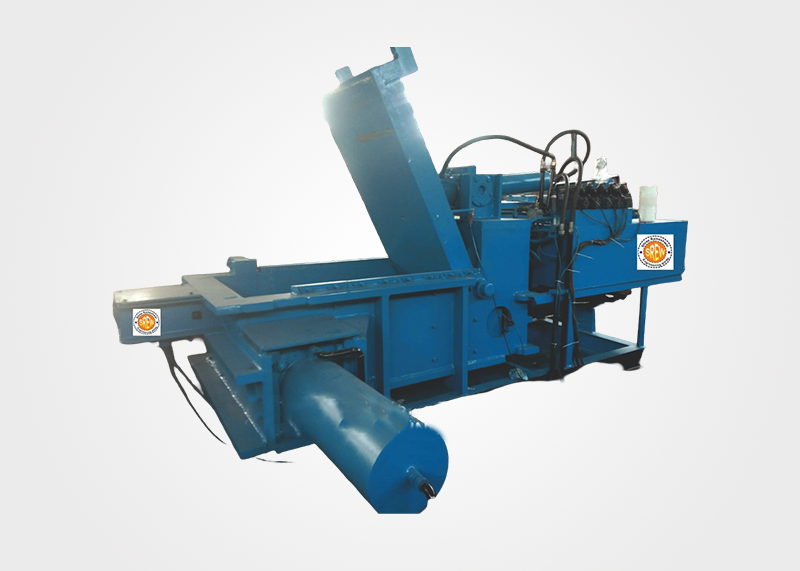

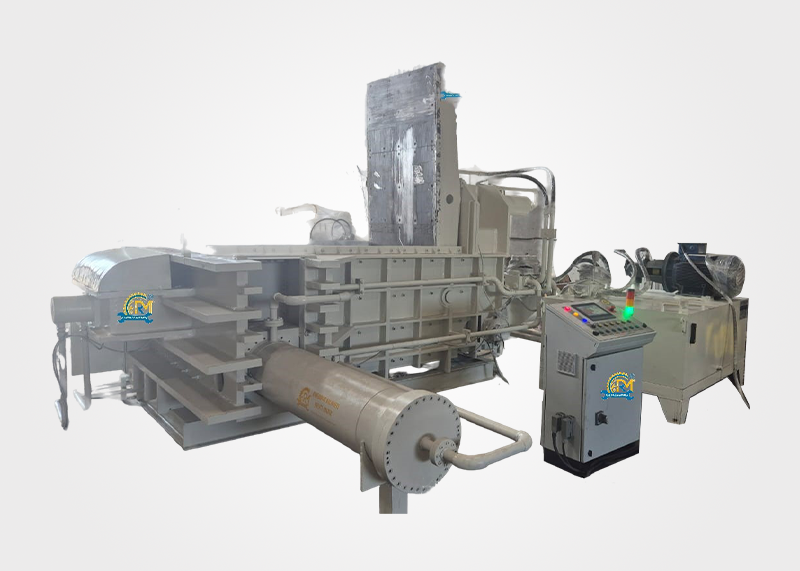

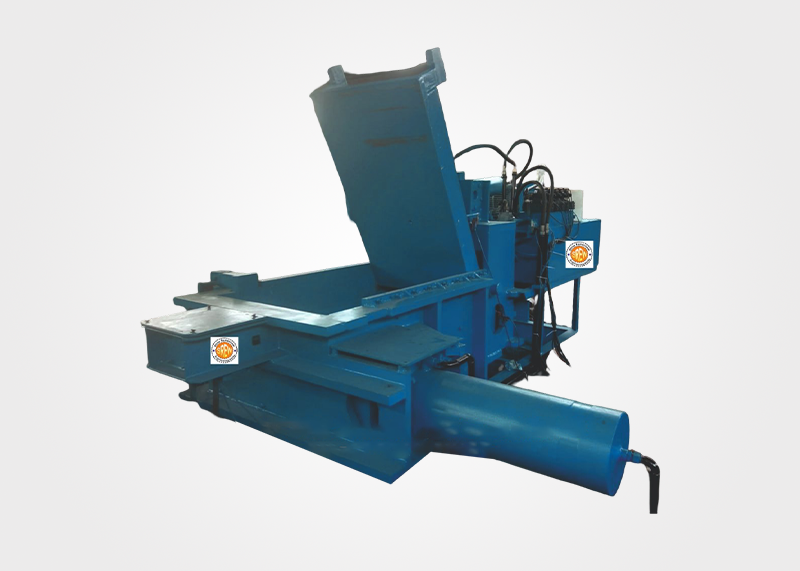

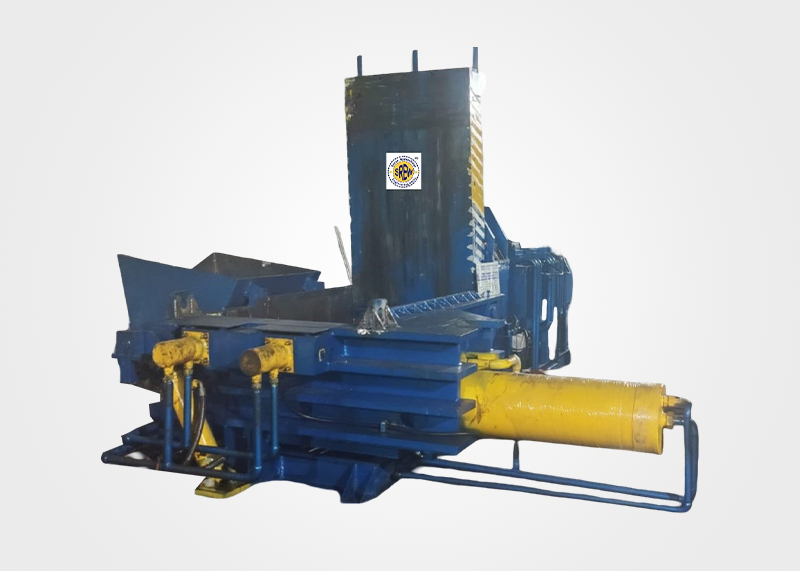

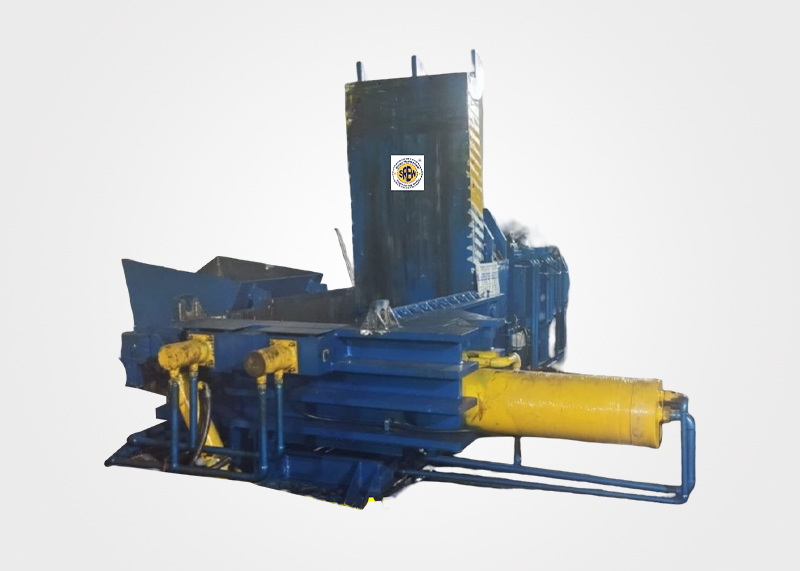

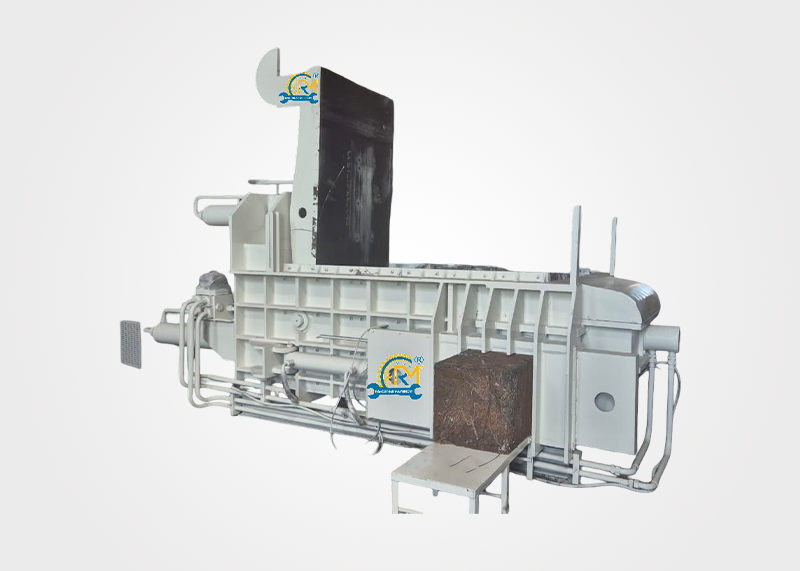

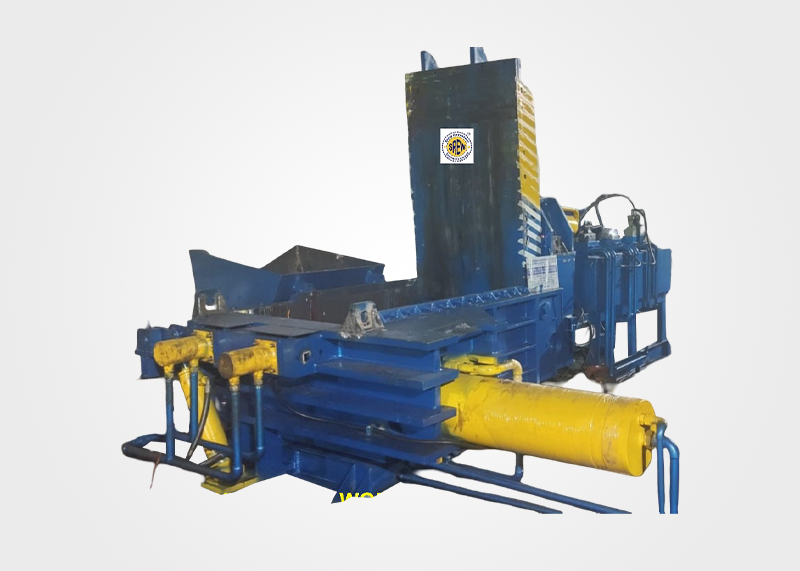

The Jumbo Triple Action Baling Press Machine is a heavy-duty hydraulic solution designed for efficient and compact baling of industrial waste. With triple compression cylinders and PLC control, it delivers powerful performance and consistent output.
| Baling Chamber | 40" X 48" X 84" (H X W X L) |
| Bale Size | 20" X 20" (H X W) |
| Electric Motor | 50 + 3 H.P. 3 PHASE 1440 RPM |
| Body | Fabricated 50+12 mm |
| Hard Liner Plates | Provided (C 45) |
| Shearing Blades | Provided |
| Oil Drive | Double Vane Pump Systems |
| Working Liquid | Hydro ENCL0-68 (Not in our scope) |
| Bale Ejection | Bottom / Side |
| Total No. of Cylinder | 7 Nos. |
| Force on Lid | 100 Tons (220 Bore X 270 OD X 150 Ram) |
| Force on Main Cylinder | 150 Tons (300 Bore X 245 OD X 140 Ram) (75 TON X 2 Nos.) |
| Force on Side Cylinder | 150 Tons (350 Bore X 400 OD X 200 Ram) |
| Door Lock Cylinder | 60 Tons (150 Bore X 180 OD X 100 Ram) (30 TON X 2 Nos.) |
| Bale Eject Cylinder | 25 Tons (140 Bore X 160 OD X 90 Ram) |
| Machine Testing Pressure | 3500 PSI |
| Maximum Working Pressure | 3000 PSI |
| Oil Cooling Systems | Provided (3 TR) |
| PLC System | Provided |
| Idle Cycle Time | 160 to 180 Seconds (Approx) |
| Weight of the Bale | 160 to 200 Kgs. (Depends on material & density) |
| Oil Tank Capacity | 1500 Lts. |
| Operation of the Machine | PLC Operate |
| Machine Weight | 20 Ton Approx |
| Quotations Valid | 10 Days |
| Machine Delivery Time | 120 to 130 Days |
